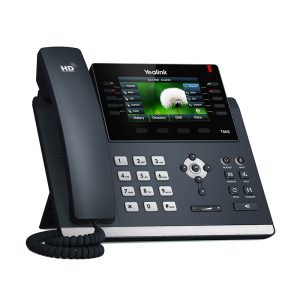

Yealink SIP-T46S

Điện thoại IP doanh nghiệp Yealink SIP-T46S:

• Màn hình màu 4,3″ 480 x 272 pixel có đèn nền
• Hỗ trợ codec Opus *
• Mẫu T4S Auto-P thống nhất
• Lên đến 16 tài khoản SIP
• Hai cổng Gigabit Ethernet
• Hỗ trợ PoE
• Ghi âm USB
• Hỗ trợ các mô-đun mở rộng
• Chân đế với 2 góc điều chỉnh

Audio Features

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Codecs: AMR-WB (optional), AMR-NB (optional), Opus*, G.722, G.711(A/µ), G.723.1, G.729, G.729A, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFOFull-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 16 VoIP accounts
• Call hold, mute, DND, one-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, SMS, emergency call
• Redial, call return, auto answer, 3-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• USB port (2.0 compliant) for:
  – Bluetooth earphone through BT40/BT41,
  – Contact synchronization through BT40/BT41,
  – Wi-Fi through WF40/WF50,
  – USB call recording through USB flash drive
• USB connectivity to Yealink UH36 headset:
  – Basic functions: Answer / end, call mute
  – Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
• Enhanced DSS key

Directory

• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Busy Lamp Field (BLF), Bridged Line Apperance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail, flexible seating
• Call park, call pickup, call recording
• Executive and Assistant
• Centralized call recording, visual voice mail

Display and Indicator

• 4.3″ 480 x 272-pixel color display with backlight
• 16 bit depth color
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status
  information
• Wallpaper
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Screensaver
• Power saving

Feature keys

• 10 line keys with LED
• 10 line keys can be programmed up to 27 paperless DSS keys (3-page view)
• 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• Volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface

• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• 1 x USB port (2.0 compliant)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
• 1 x RJ12 (6P6C) EXT port: Supports up to 6 Expansion Modules for an attendant console application

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
• IPv6, LLDP/CDP/DHCP VLAN, ICE

Package Features

•  Package content:
  – Yealink SIP-T46S IP phone
  – Handset with handset cord
  – Ethernet Cable (2m CAT5E FTP Cable)
  – Stand
  – Quick Start Guide
  – Power Adapter (Optional)
  – Wall Mount Bracket (Optional)
• Qty/CTN: 5 PCS
•  N.W/CTN: 7.6 kg
• G.W/CTN: 8.4 kg
• Giftbox size: 274mm*255mm*128mm
•  Carton Meas: 660mm*286mm*263mm
