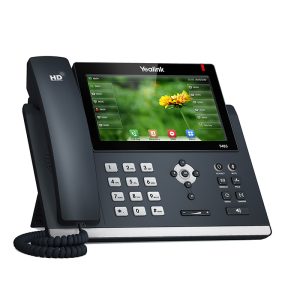

Yealink SIP-T48S

Điện thoại IP Yealink SIP-T48S:

• Màn hình cảm ứng màu 7 “800 x 480 pixel với đèn nền
• Hỗ trợ codec Opus *
• USB 2.0
• Lên đến 16 tài khoản SIP
• Hai cổng Gigabit Ethernet
• Hỗ trợ PoE
• Wi-Fi qua WF40/WF50, Bluetooth qua BT40 / BT41
• Hỗ trợ các mô-đun mở rộng
• Đứng với hai góc điều chỉnh

Audio Features

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Codecs: AMR-WB (optional), AMR-NB (optional), Opus*, G.722, G.711(A/µ), G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 16 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, emergency call
• Redial, call return, auto answer
• 3-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan, XML Browser, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• USB port (2.0 compliant) for:
• Bluetooth earphone through BT40,
• Contact synchronization through BT40,
• Wi-Fi through WF40,
• USB call recording through USB flash drive
• Enhanced DSS key

Directory

• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Busy Lamp Field (BLF)
• Bridged Line Apperance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Call park, call pickup
• Executive and Assistant
• Centralized call recording
• Visual voice mail
• Call recordingDisplay and Indicator
• 7″ 800 x 480-pixel color touch screen with backlight
• 24 bit depth color
• LED for call and message waiting indication
• Wallpaper
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number and photo
• Screensaver
• Power saving

Feature keys

• 29 one-touch DSS keys
• 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
• 6 navigation keys
• Volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface

• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• 1 x USB port (2.0 compliant)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
• 1 x RJ12 (6P6C) EXT port:Supports up to 6 Expansion Modules for an attendant console application

Other Physical Features

• Color: Classic Grey
• Wall mountable (optional)
• External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
• Power consumption (PSU): 2.2-4.9W
• Power consumption (PoE): 3.2-7.5W
• Dimension (W*D*H*T):266mm*226mm*185mm*54mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP> Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE

Package Features

• Package content:
  – Yealink SIP-T48S IP phone
  – Handset with handset cord
  – Ethernet Cable (2m CAT5E FTP Cable)
  – Stand
  – Quick Start Guide
  – Power Adapter (Optional)
  – Wall Mount Bracket (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 8.2 kg
• G.W/CTN: 9.0 kg
• Giftbox size: 324mm*263mm*128mm
• Carton Meas: 660mm*338mm*273mm
